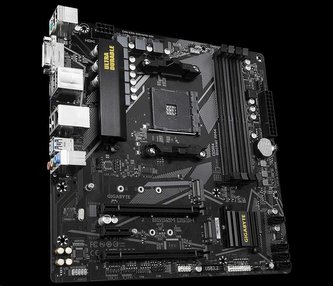

GIGABYTE MB Sc AM4 B550M DS3H, AMD B550M, 4 x DDR4, HDMI

---

\n
1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
\n
2. Support for DDR4 4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
\n
3. Dual channel memory architecture
\n
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
\n
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
\n
6. Support for Extreme Memory Profile (XMP) memory modules
   (Please refer \"Memory Support List\" for more information.)
\n

\n
1. Realtek ALC887 codec
\n
2. High Definition Audio
\n
3. 2/4/5.1/7.1-channel
   To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE\'s website for details on configuring the audio software.
\n

\n
1. Realtek GbE LAN chip (1000 Mbit/100 Mbit)
\n

\n
1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
\n
2. BLUETOOTH 5.0
\n
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   Actual data rate may vary depending on environment and equipment.
\n

x PCI Express x16 slot (PCIEX16), integrated in the CPU:

\n
1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
\n
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
   For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
\n

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:

\n
1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
   The DVI-D port does not support D-Sub connection by adapter.
\n
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   Support for HDMI 2.1 version, HDCP 2.3, and HDR.
\n

x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

\n
1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
\n
2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
\n

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:

\n
1. Supporting SATA and PCIe 3.0 x2 SSDs
\n

4 x SATA 6Gb/s connectors, integrated in the Chipset:

\n
1. Support for RAID 0, RAID 1, and RAID 10
\n

CPU:

\n
1. 4 x USB 3.2 Gen 1 ports on the back panel
\n

Chipset:

\n
1. 2 x USB 3.2 Gen 1 ports available through the internal USB header
\n
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
\n

\n
1. 1 x 24-pin ATX main power connector
\n
2. 1 x 8-pin ATX 12V power connector
\n
3. 1 x CPU fan header
\n
4. 2 x system fan headers
\n
5. 2 x addressable LED strip headers
\n
6. 2 x RGB LED strip headers
\n
7. 1 x CPU cooler LED strip/RGB LED strip header
\n
8. 2 x M.2 Socket 3 connectors
\n
9. 4 x SATA 6Gb/s connectors
\n
10. 1 x front panel header
\n
11. 1 x front panel audio header
\n
12. 1 x USB 3.2 Gen 1 header
\n
13. 1 x USB 2.0/1.1 header
\n
14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
\n
15. 1 x serial port header
\n
16. 1 x Clear CMOS jumper
\n
17. 1 x Q-Flash Plus button
\n

\n
1. 1 x PS/2 keyboard/mouse port
\n
2. 1 x DVI-D port
\n
3. 1 x HDMI port
\n
4. 4 x USB 3.2 Gen 1 ports
\n
5. 4 x USB 2.0/1.1 ports
\n
6. 1 x RJ-45 port
\n
7. 3 x audio jacks
\n

\n
1. Voltage detection
\n
2. Temperature detection
\n
3. Fan speed detection
\n
4. Overheating warning
\n
5. Fan fail warning
\n
6. Fan speed control
   Whether the fan speed control function is supported will depend on the cooler you install.
\n

\n
1. 1 x 256 Mbit flash
\n
2. Use of licensed AMI UEFI BIOS
\n
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
\n

\n
1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer
\n
2. Support for Q-Flash Plus
\n
3. Support for Q-Flash
\n
4. Support for Xpress Install
\n

\n
1. Norton Internet Security (OEM version)
\n
2. Realtek 8118 Gaming LAN Bandwidth Control Utility
\n

\n
1. Support for Windows 10 64-bit
\n

\n
1. Micro ATX Form Factor; 24.4cm x 24.4cm
\n

\n
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors\' website or 3rd party website.
\n
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
